Identify and remediate vulnerabilities for CVE-2021-22956

Last published : Sep 21, 2026
In the NetScaler Console security advisory dashboard, under Current CVEs > <number of> NetScaler instances are impacted by common vulnerabilities and exposures (CVEs), you can see all the instances vulnerable due to this specific CVE. To check the details of the CVE-2021-22956 impacted instances, select CVE-2021-22956 and click View Affected Instances.

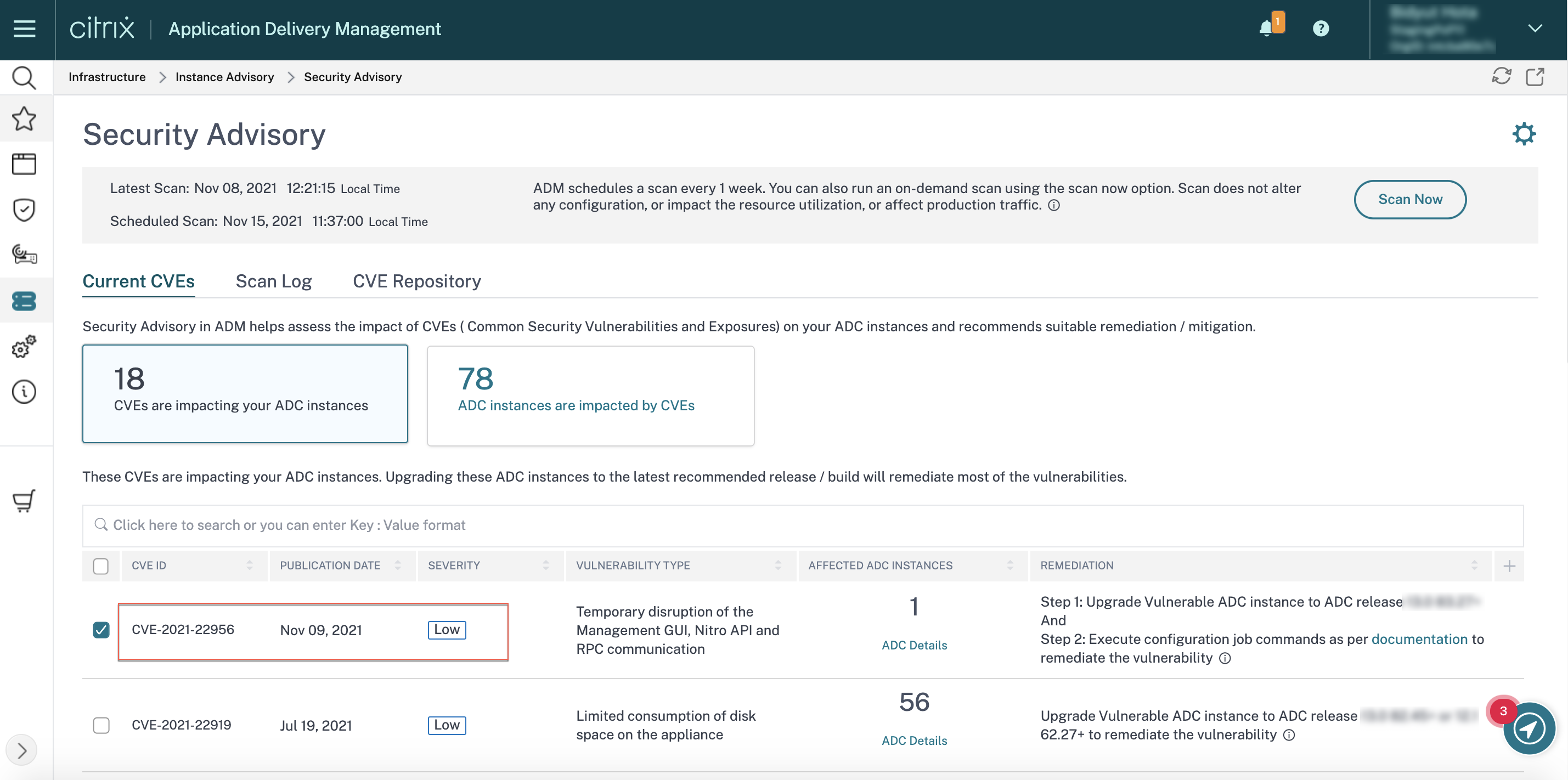

Security advisory dashboard for CVE-2021-22927 and CVE-2021-22920
The <number of> NetScaler instances impacted by CVEs window appear. Here you see the count and details of the NetScaler instances impacted by CVE-2021-22956.

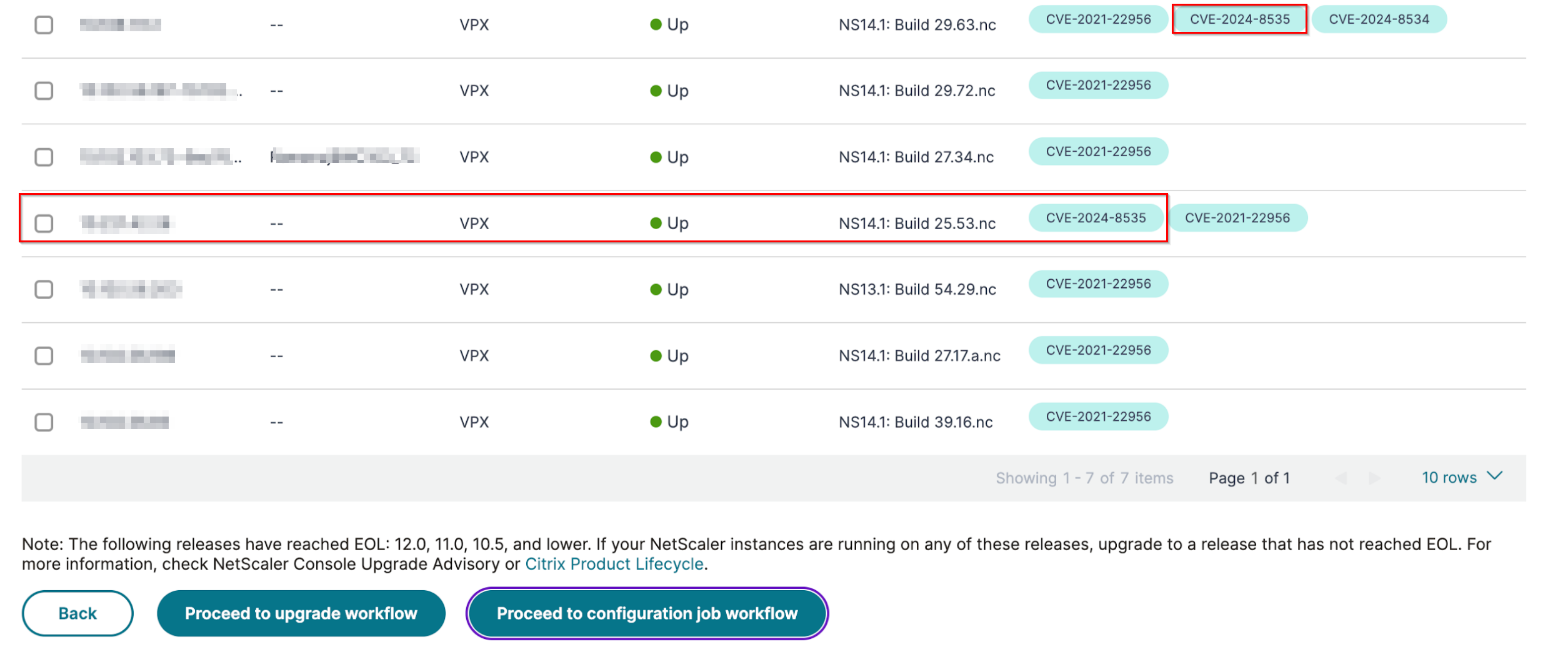

Instances impacted by CVE-2020-8300
For more information about the security advisory dashboard see, Security Advisory.
Note
It might take some time for security advisory system scan to conclude and reflect the impact of CVE-2021-22956 in the security advisory module. To see the impact sooner, start an on-demand scan by clicking Scan Now.
Related information

Identify CVE-2021-22956 impacted instances

CVE-2021-22956 requires a custom scan, in which NetScaler Console service connects with the managed NetScaler instance, pushes a script to the instance. The script runs on the NetScaler instance and checks the Apache configuration file (httpd.conf file) and maximum client connections (maxclient) parameters to determine if an instance is vulnerable or not. The information the script shares with NetScaler Console service is the vulnerability status in Boolean (true or false). The script also gives back to NetScaler Console service a list of counts for max_clients for different network interfaces, for example local host, NSIP, and SNIP with management access.
This script runs every time your scheduled on on-demand scans run. After the scan is completed, the script is deleted from the NetScaler instance.

Remediate CVE-2021-22956

For CVE-2021-22956 -impacted NetScaler instances, the remediation is a two-step process. In the GUI, under Current CVEs > NetScaler instances are impacted by CVEs, you can see step 1 and 2.

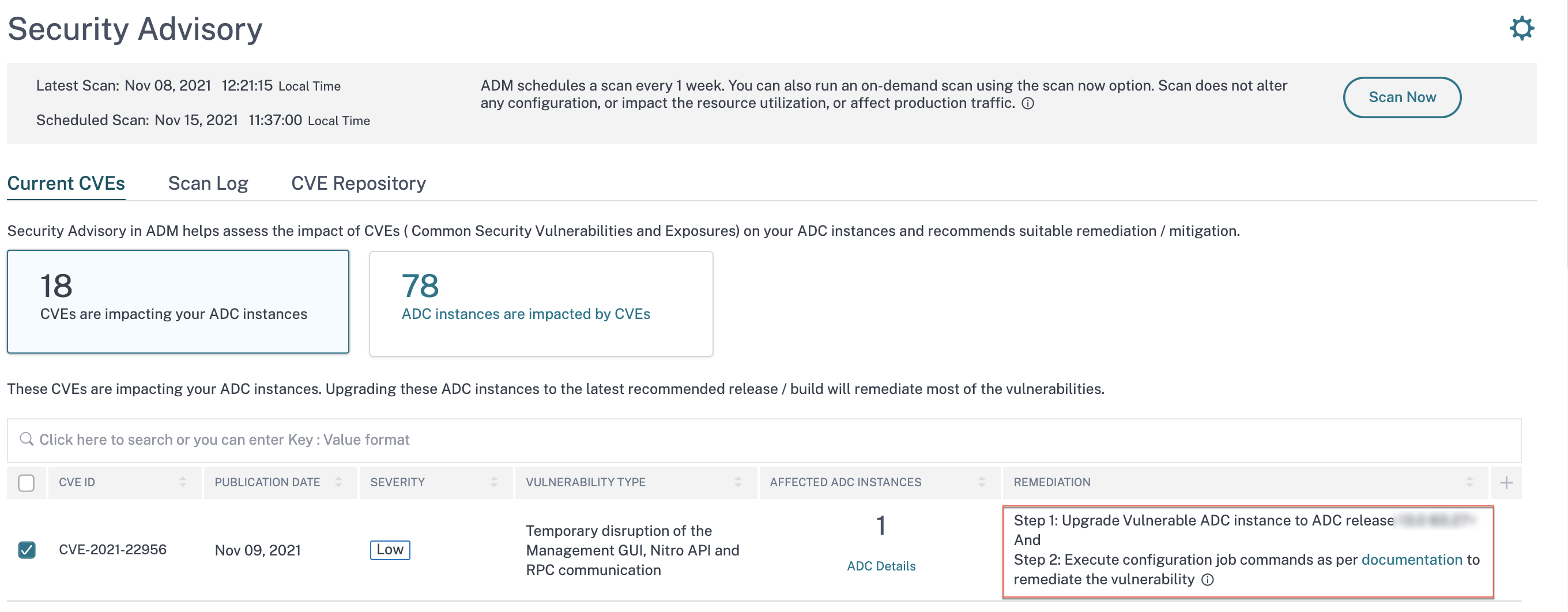

Remediation steps for CVE-2021-22927 and CVE-2021-22920
The two steps include:
  1. Upgrading the vulnerable NetScaler instances to a release and build that has the fix.
  2. Applying the required configuration commands using the customizable built-in configuration template in configuration jobs.
Under Current CVEs> NetScaler instances impacted by CVEs, you see two separate workflows for this 2-step remediation process: which are Proceed to upgrade workflow and Proceed to configuration job workflow.

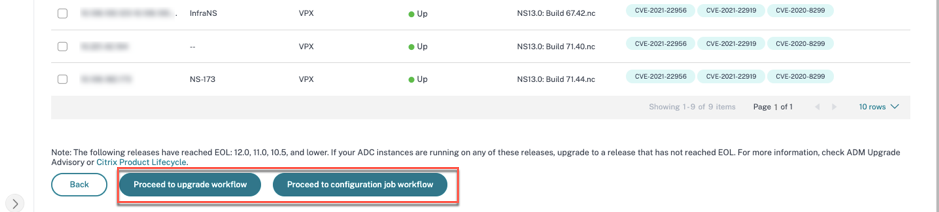

Remediation workflows

Step 1: Upgrade the vulnerable NetScaler instances

To upgrade the vulnerable instances, select the instances and click Proceed to upgrade workflow. The upgrade workflow opens with the vulnerable NetScaler instances already populated.
For more information on how to use NetScaler Console to upgrade NetScaler instances, see Create a NetScaler upgrade job.
Note
This step can be done at once for all the vulnerable NetScaler instances.

Step 2: Apply configuration commands

After you've upgraded the impacted instances, in the <number of> NetScaler instances impacted by CVEs window, select the instance impacted by CVE-2021-2295 and click Proceed to configuration job workflow. The workflow includes the following steps.
  1. Customizing the configuration.
  2. Reviewing the auto-populated impacted instances.
  3. Specifying inputs for variables for the job.
  4. Reviewing the final config with variable inputs populated.
  5. Running the job.
Keep the following points in mind before you select an instance and click Proceed to configuration job workflow:
  • For a NetScaler instance impacted by multiple CVEs (such as CVE-2020-8300, CVE-2021-22927, CVE-2021-22920, and CVE-2021-22956): when you select the instance and click Proceed to configuration job workflow, the built-in configuration template does not auto-populate under Select configuration. Drag and drop the appropriate config job template under Security Advisory Template manually to the config job pane on the right side.
  • For multiple NetScaler instances that are impacted by CVE-2021-22956 only: you can run config jobs on all instances at once. For example, you've NetScaler 1, NetScaler 2, and NetScaler 3, and all of them are impacted only by CVE-2021-22956. Select all these instances and click Proceed to configuration job workflow, and the built-in configuration template auto-populates under Select configuration.
  • For multiple NetScaler instances impacted by CVE-2021-22956 and one or more other CVEs (such as CVE-2020-8300, CVE-2021-22927, and CVE-2021-22920), which require remediation to be applied to each NetScaler at a time: when you select these instances and click Proceed to configuration job workflow, an error message appears telling you to run the config job on each NetScaler at a time.

Step 1: Select configuration

In the configuration job workflow, the built-in configuration base template auto-populates under Select configuration.

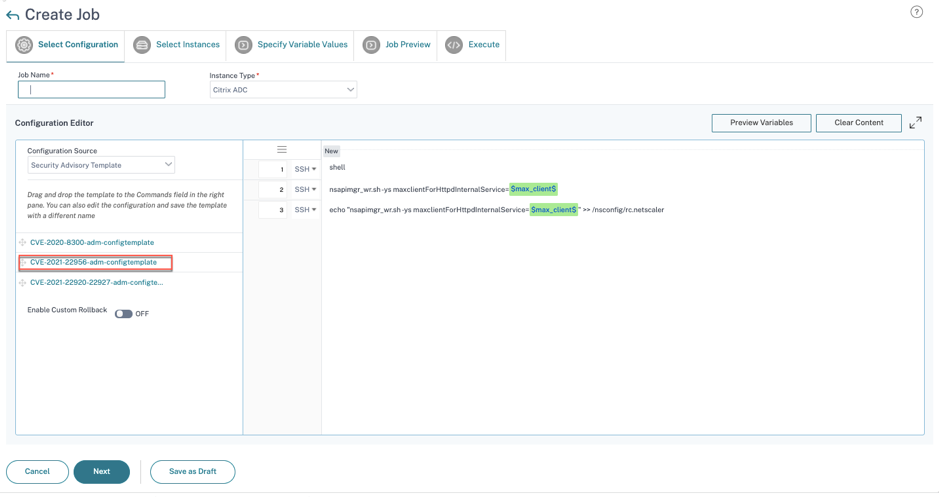

Select config

Step 2: Select the instance

The impacted instance is auto-populated under Select Instances. Select the instance. If this instance is part of an HA pair, select Execute on Secondary Nodes. Click Next.

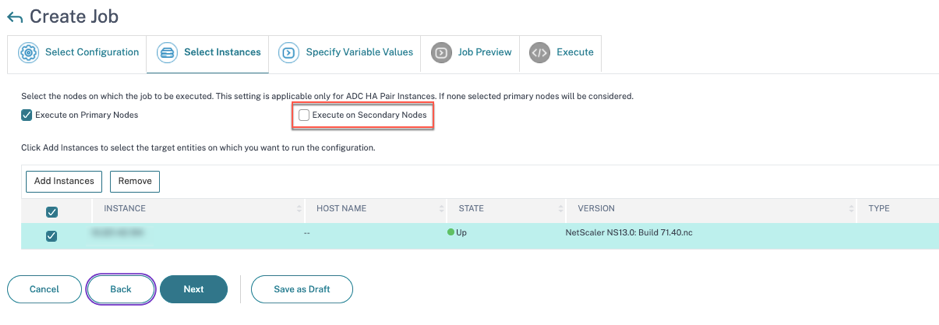

Select instance
Note
For NetScaler instances in cluster mode, using NetScaler Console security advisory, NetScaler Console supports running the config job only on the cluster configuration coordinator (CCO) node. Run the commands on non-CCO nodes separately.
rc.netscaler is synced across all HA and cluster nodes, making the remediation persistent after each restart.

Step 3: Specify variable values

Enter the variable values.

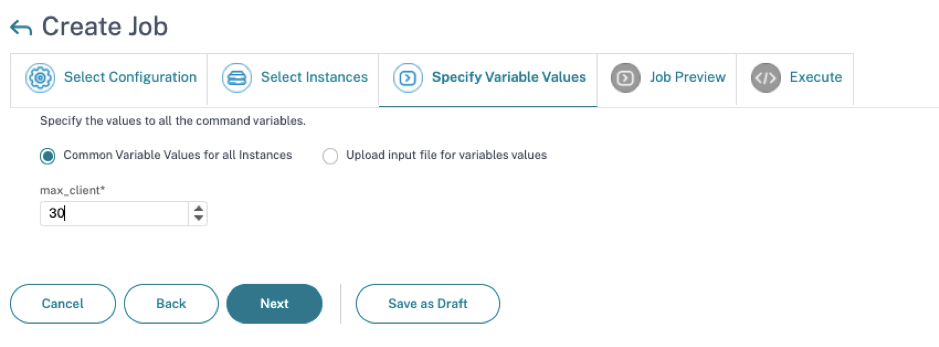

Specify variables
Select one of the following options to specify variables for your instances:
Common variable values for all instances: Enter a common value for the variable max_client.
Upload input file for variables values: Click Download Input Key File to download an input file. In the input file, enter values for the variable max_client and then upload the file to the NetScaler Console server.
Note
For both options mentioned above, the recommended max_client value is 30. You can set the value according to your present value. However, it should not be zero, and it should be less than or equal to the max_client set in the /etc/httpd.conf file. You can check the present value set in the Apache HTTP Server configuration file /etc/httpd.conf by searching the string MaxClients, in the NetScaler instance

Step 4: Preview the configuration

Previews the variable values having been inserted in the config and click Next.

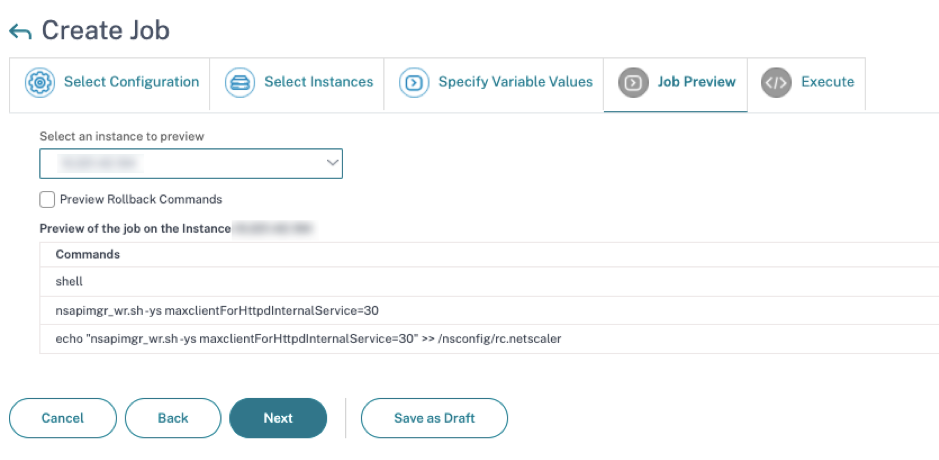

Preview the job

Step 5: Run the job

Click Finish to run the configuration job.
Run configuration job
After the job is run, it appears under Infrastructure > Configuration > Configuration Jobs.
After completing the two remediation steps for all vulnerable NetScaler instances, you can run an on-demand scan to see the revised security posture.
