Configure a secondary NIC to access NetScaler® agent

Last published : Sep 21, 2026
You can configure two NICs on an agent. Using the Dual NIC architecture, agent will be able to:
  • Establish communication between agent and NetScaler instances - You can use the first NIC to isolate the traffic that is received and sent through the NetScaler Console and also to communicate between NetScaler Console and its managed NetScaler instances in another network.
  • Establish communication between agent and NetScaler Console - You can use the second NIC to manage the NetScaler Console that is on a network and perform administrative tasks
Note
You cannot interchange the functionality and configuration of both the NICs.

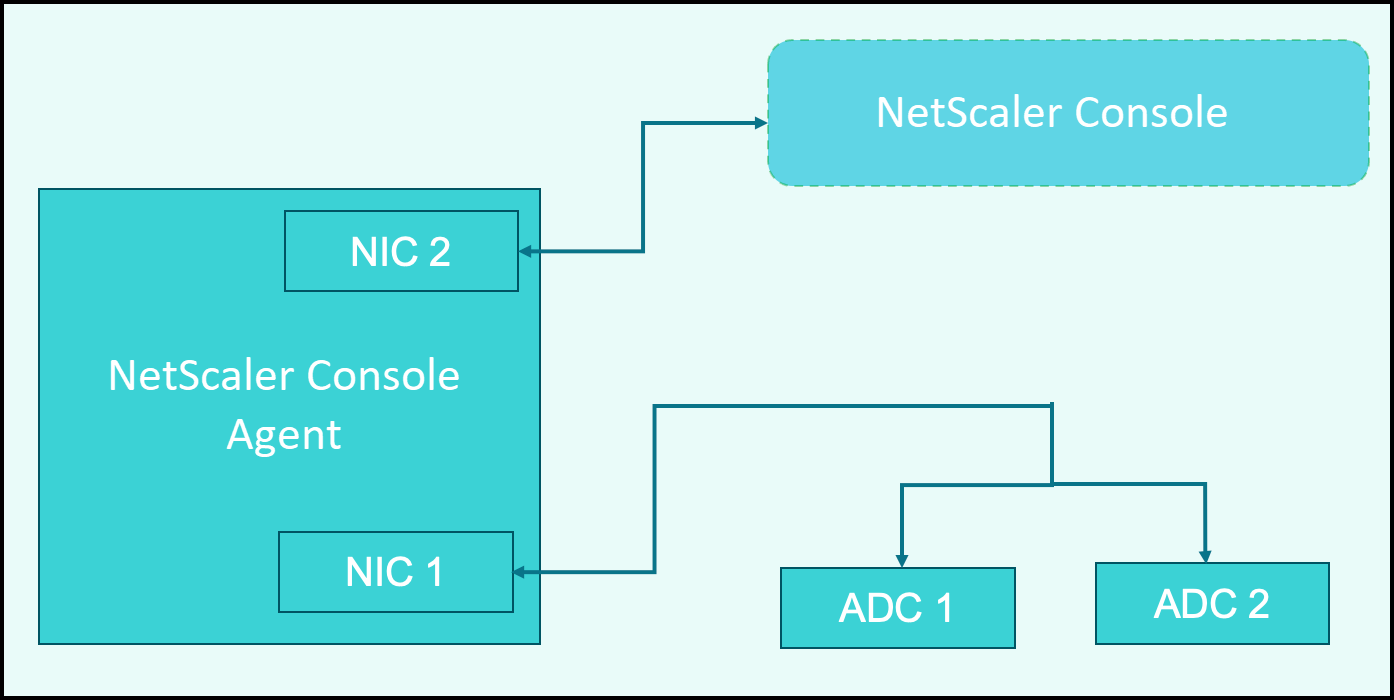

Block Diagram of Dual NIC Infrastructure
In this scenario, as an administrator, you can:
  • Configure IP address for the traffic between NetScaler Console and its managed NetScaler instances.
  • Configure IP address for managing the NetScaler Console software to perform all administrative tasks in the software.
Note
It is not mandatory to configure Dual NICs for an agent. It is optional and is required only when traffic between agent, NetScaler Console and NetScaler instances needs to be separated.
Related information

Modify the IPV4 NIC network addresses using CLI

  1. Open an SSHconnection to the NetScaler agent console by using an SSH client, such as PuTTY.
  2. Log in using the nsrecover/nsroot credentials and switch to the shell prompt.
  3. Run the command ifconfig. You can see the details of the two NICs that you have configured -
    • NIC 1 – For communication between Agent to NetScaler Communication
    • NIC 2 – For communication between Agent to NetScaler Console
    Code Block ifconfig
  4. Run the command networkconfig. A menu appears which allows you to set or modify the IPV4 network addresses.
    Code Block networkconfig
    Note
    Second NIC Network address can take multiple IP values.
  5. Select a menu item to modify. Save and quit the settings.
