Application overview

Last published : Sep 21, 2026
The Application Overview page displays applications with full visibility into the threat details associated in both WAF Security Violations and Bot Security Violations. You can also view information such as total violations, total WAF and Bot violations, violation by country, and so on.

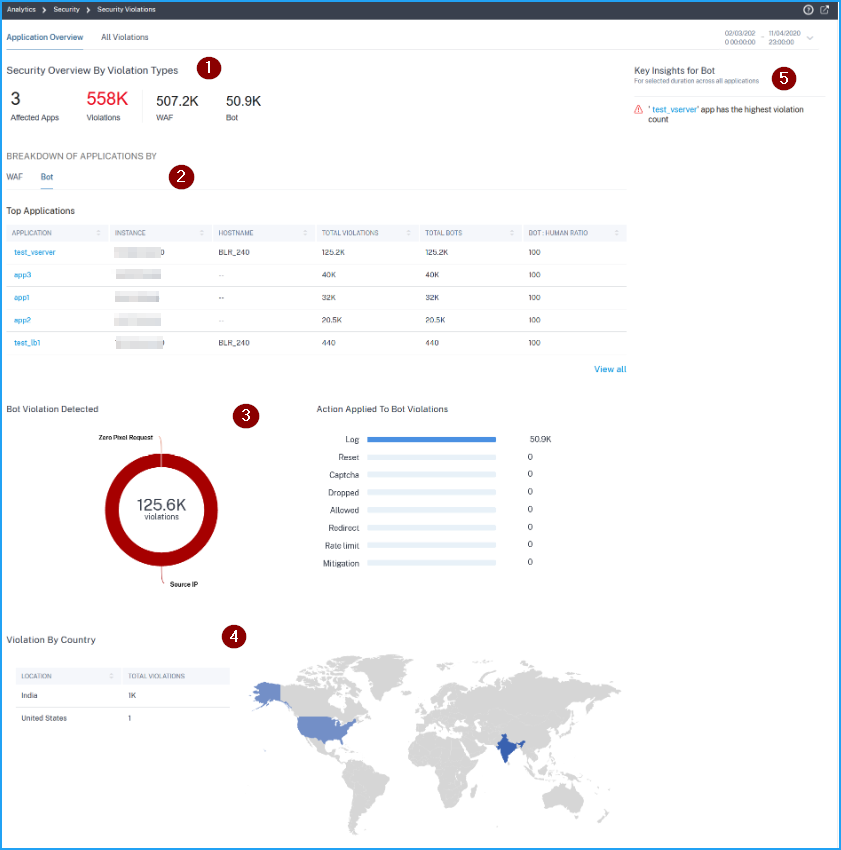

Application overview
1 – Displays the total affected applications, total violations, total WAF violations, and total Bot violations for the selected duration.
2 – Displays the WAF and Bot violation details. Click the WAF and Bot tab to view the top 5 applications based on the total violations occurred. Click View All to view all application details.
3 – Displays the top violations based on the occurrences and the actions applied.
4 – Displays a geo map view that provides visibility from which locations the violations have occurred.
5 – Provides information based on the violations.
Related information

Violation categories

WAF Bot
Cookie Hijack Feed Fetcher
Infer Content Type XML Link Checker
CSRF Form Tagging Marketing
Deny URL Scraper
Form Field Consistency Screenshot Creator
Field Formats Search Engine
Maximum Uploads Service Agent
Referrer Header Site Monitor
Safe Commerce Speed Tester
Safe Object Tool
HTML SQL Inject Uncategorized
Start URL Virus Scanner
Cross-site scripting Vulnerability Scanner
XML DoS DeviceFP Wait Exceeded
XML Format Invalid DeviceFP
XML WSI Invalid Captcha Response
XML SSL Captcha Attempts Exceeded
XML Attachment Valid Captcha Response
XML SOAP Fault Captcha Client Muted
XML Validation Captcha Wait Time Exceeded
Others Request Size Limit Exceeded
IP Reputation Rate Limit Exceeded
HTTP DOS Block list (IP, subnet, policy expression)
TCP Small Window Allow list (IP, subnet, policy expression)
Signature Violation Zero Pixel Request
File Upload Type Source IP
JSON cross-site scripting Host
JSON SQL Geo Location
JSON DOS URL
Command Injection Crawler
Buffer Overflow
Content Type
Cookie Consistency

View WAF violation details

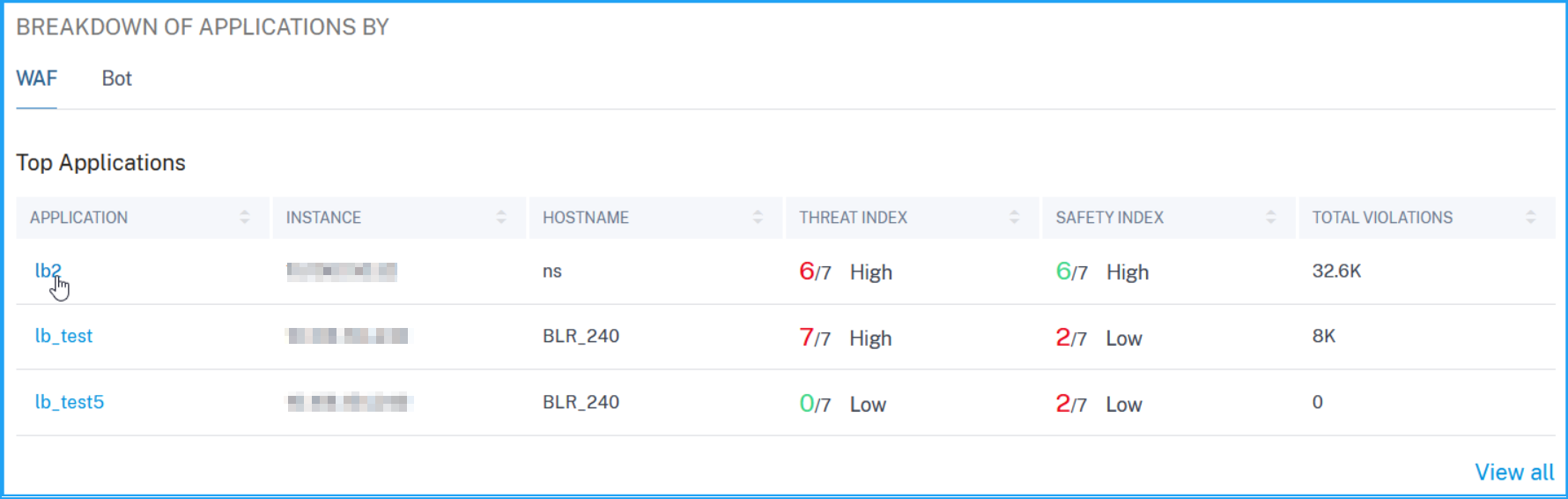

Click an application from the Top Applications or from the View All option to view the WAF details.
WAF
The Security Overview page for the selected application is displayed. Under WAF, you can view:
  • A graph view that indicates the total violations, threat index score, safety index score for the application.

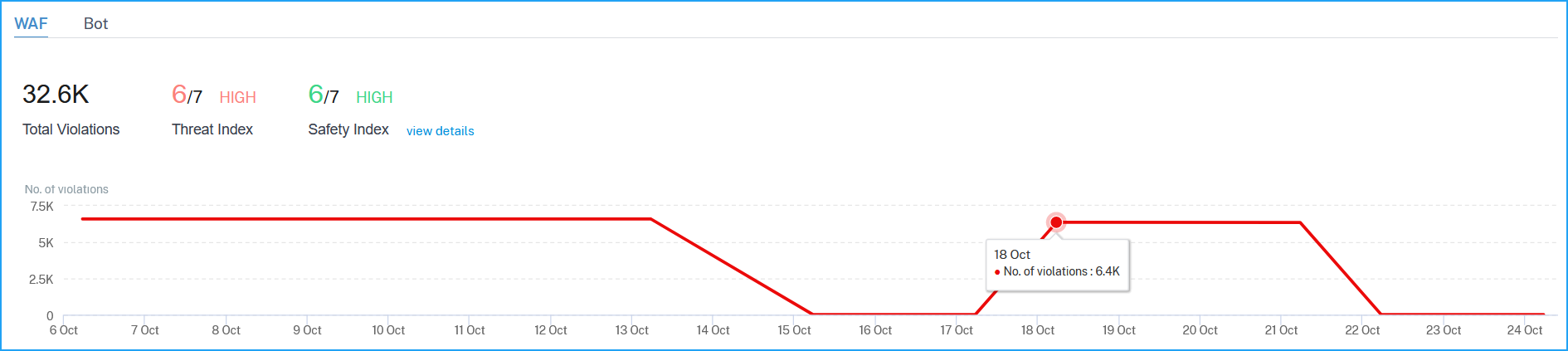

    WAF graph

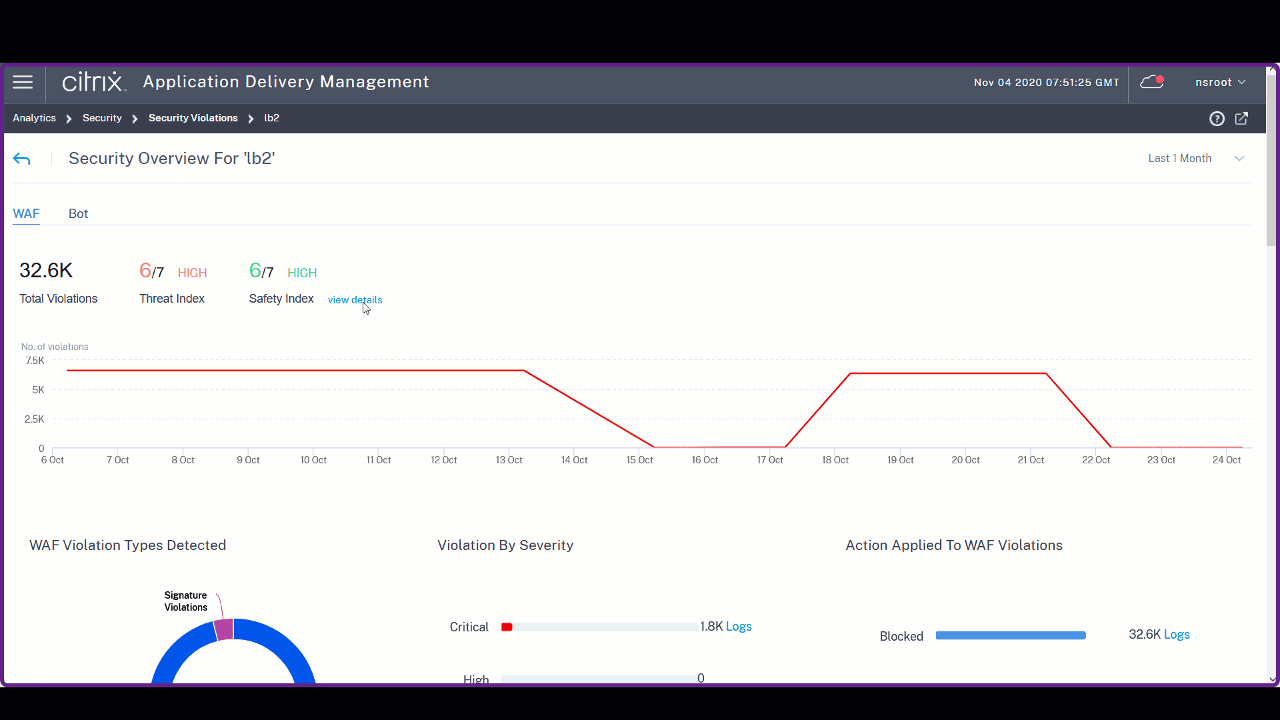

    Click View Details to see the Application Firewall and NetScaler System Security configuration details.
    View details

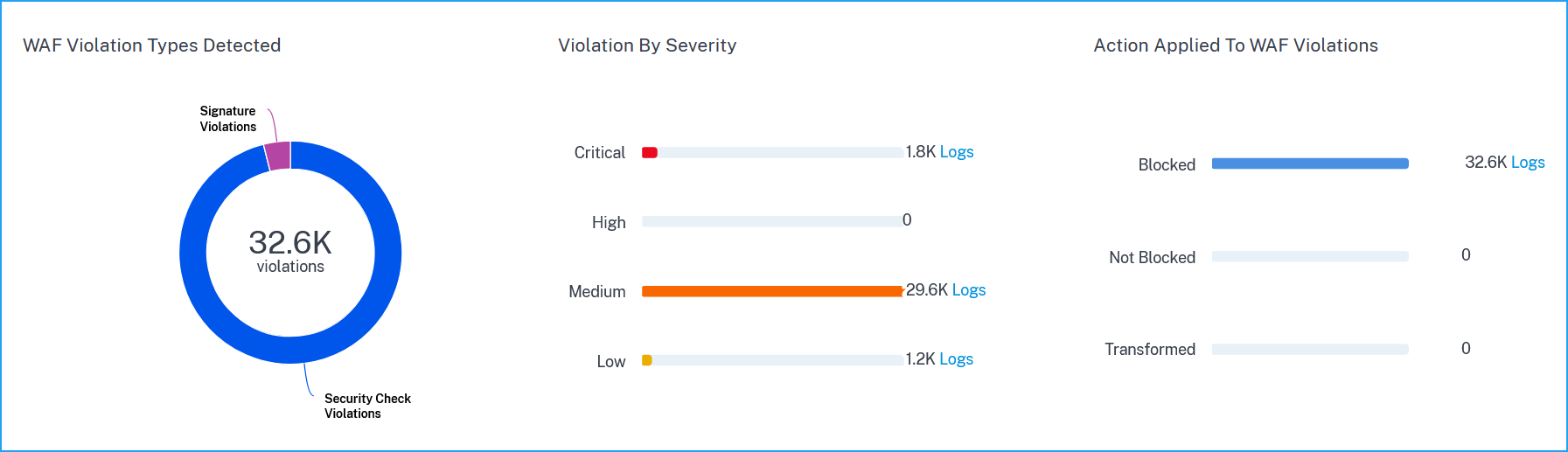

  • The violations based on types, severity, and actions applied.
    WAF graph details
    Click Logs to view details based on the severity or action taken.

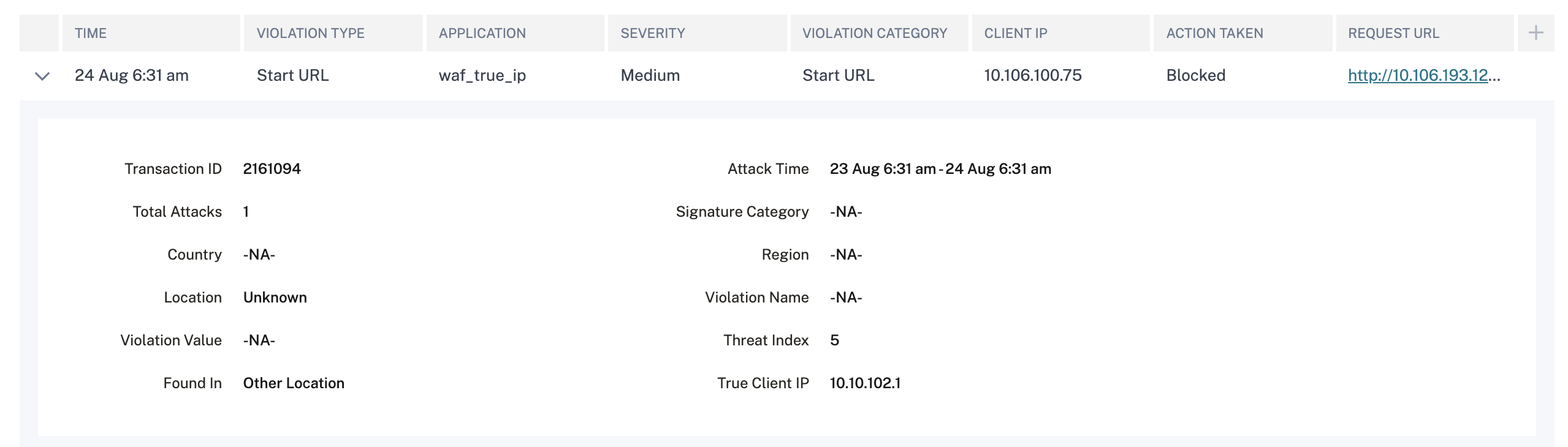

    Logs

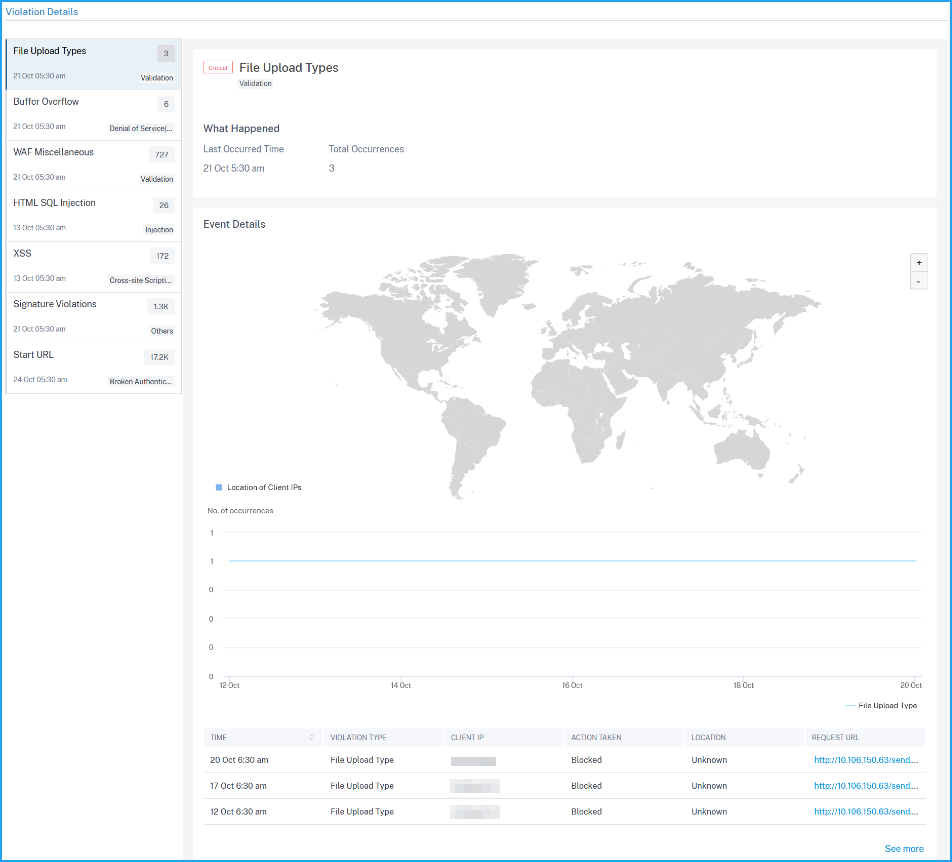

  • The violations affected on the application. Under Violation Details, you can view the affected violation details. Click each violation to view details such as:
    • What Happened – Indicates the total occurrences and the last occurred date and time.
    • Event Details – Displays a geo map that indicates the client IP and other violation details such as violation type, client IP, location, and so on.
      WAF violation details

View bot violation details

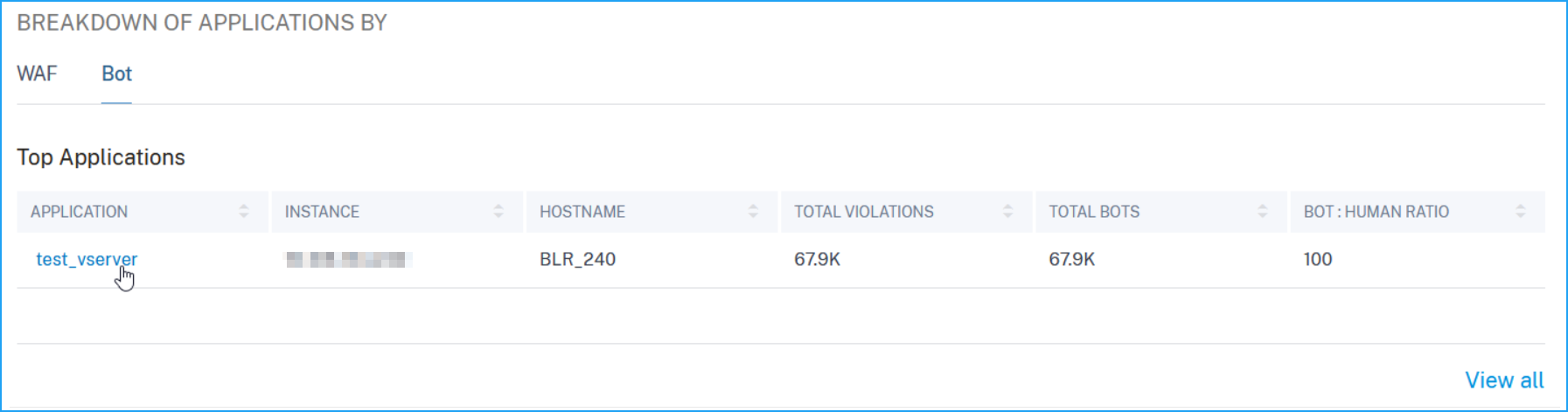

From the Bot tab, click an application from the Top Applications or from the View All option to view the bot details.
Bot details
The Security Overview page for the selected application is displayed. Under Bot, you can view:
  • A graph indicating total bots, total bad bots, total good bots, and total ratio between human users and bots accessing the application.

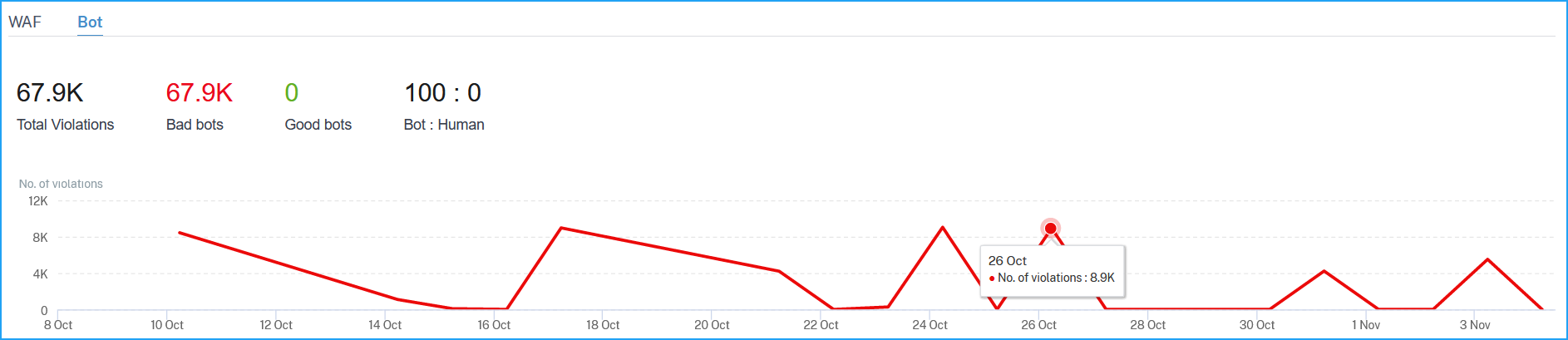

    Bot graph
  • The violations based on the bot types, severity, and actions applied.

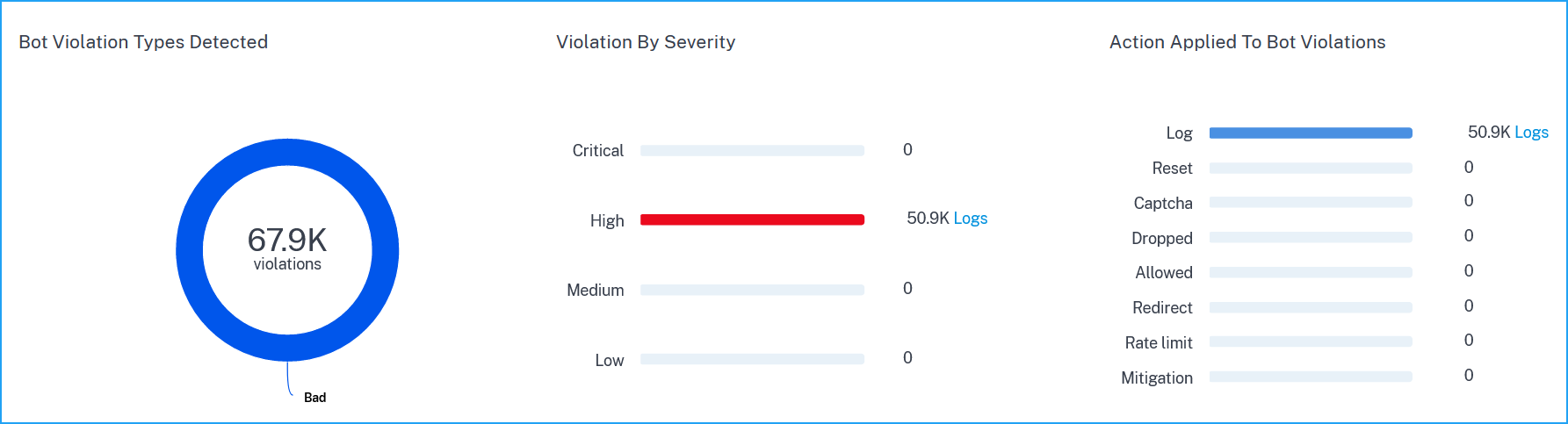

    Bot violation types
    Click Logs to view details based on severity or actions taken. If a detected bot is a Signature type bot, you can view more details such as Bot developer and Signature ID. The Signature ID enables you to identify if the detected bot is a good bot or a bad bot.

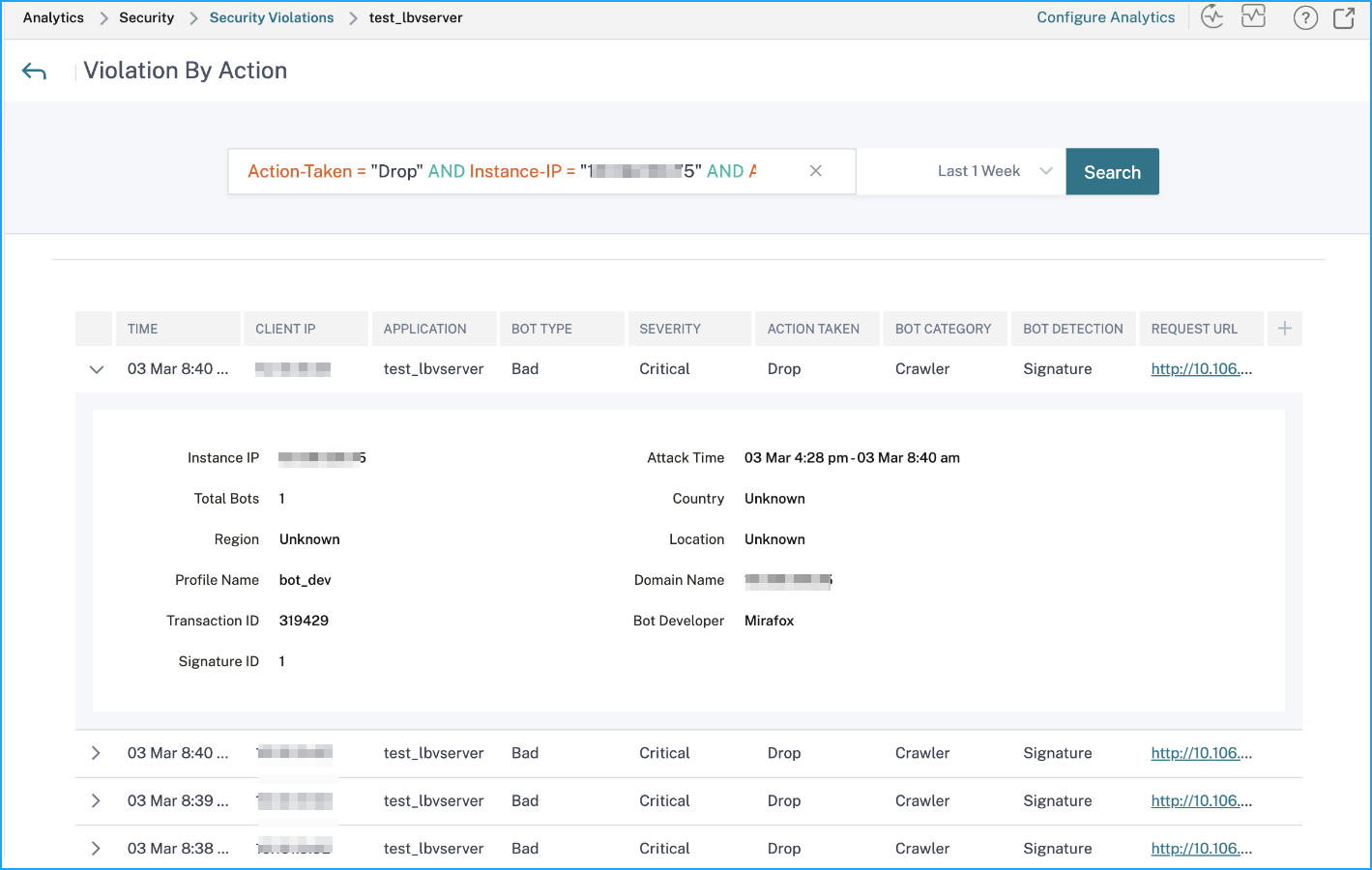

    Bot logs
    Note
    If a detected bot is any other bot type apart from Signature bot, the Signature ID and Bot developer are displayed as N/A.

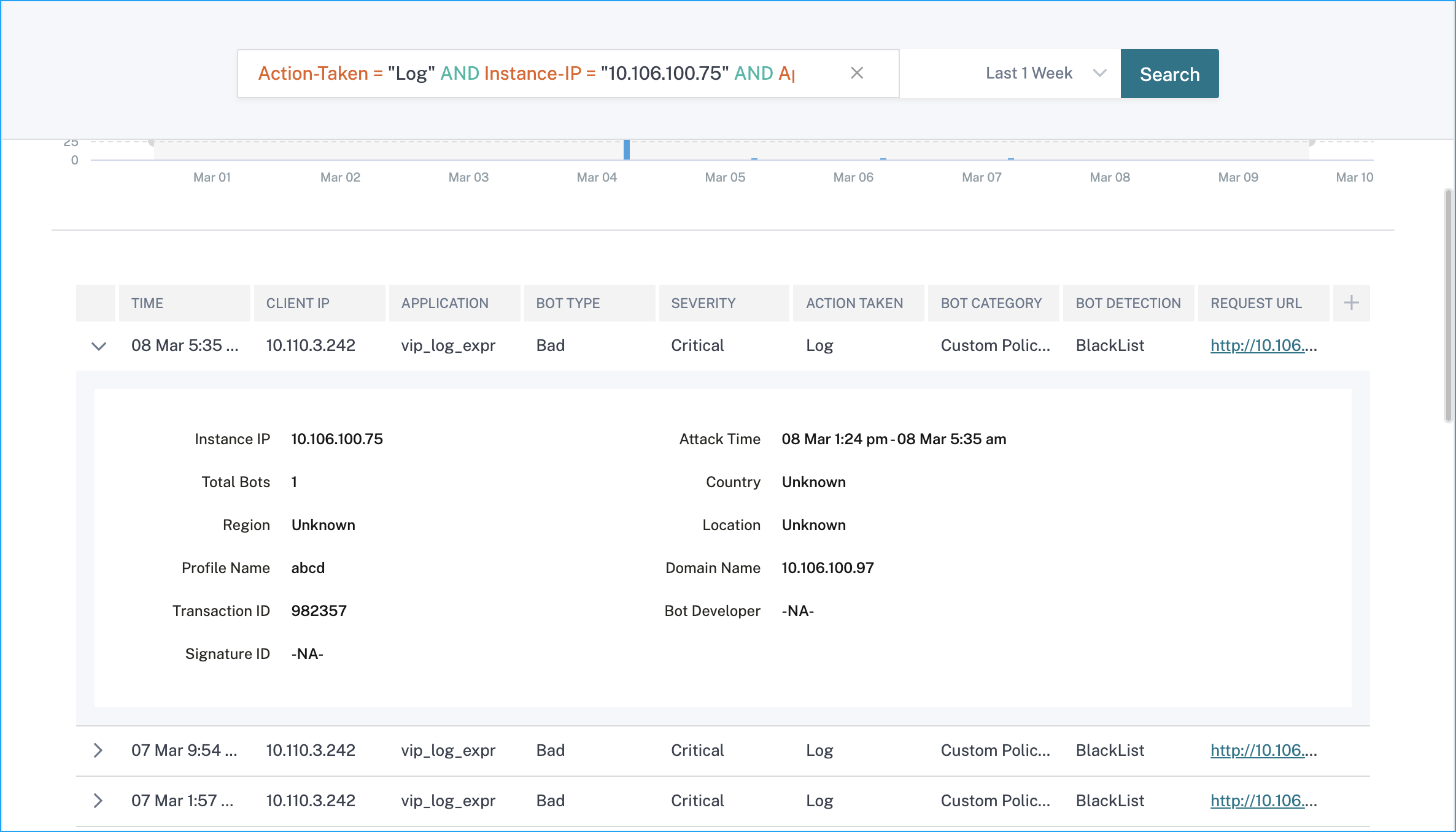

    NA type
  • The violations affected on the application. Under Violation Details, you can view the affected violation details. Click each violation to view details such as:
    • What Happened – Indicates the total occurrences and the last occurred date and time.
    • Event Details – Displays a geo map that indicates the client IP and other violation details such as violation type, client IP, location, and so on.

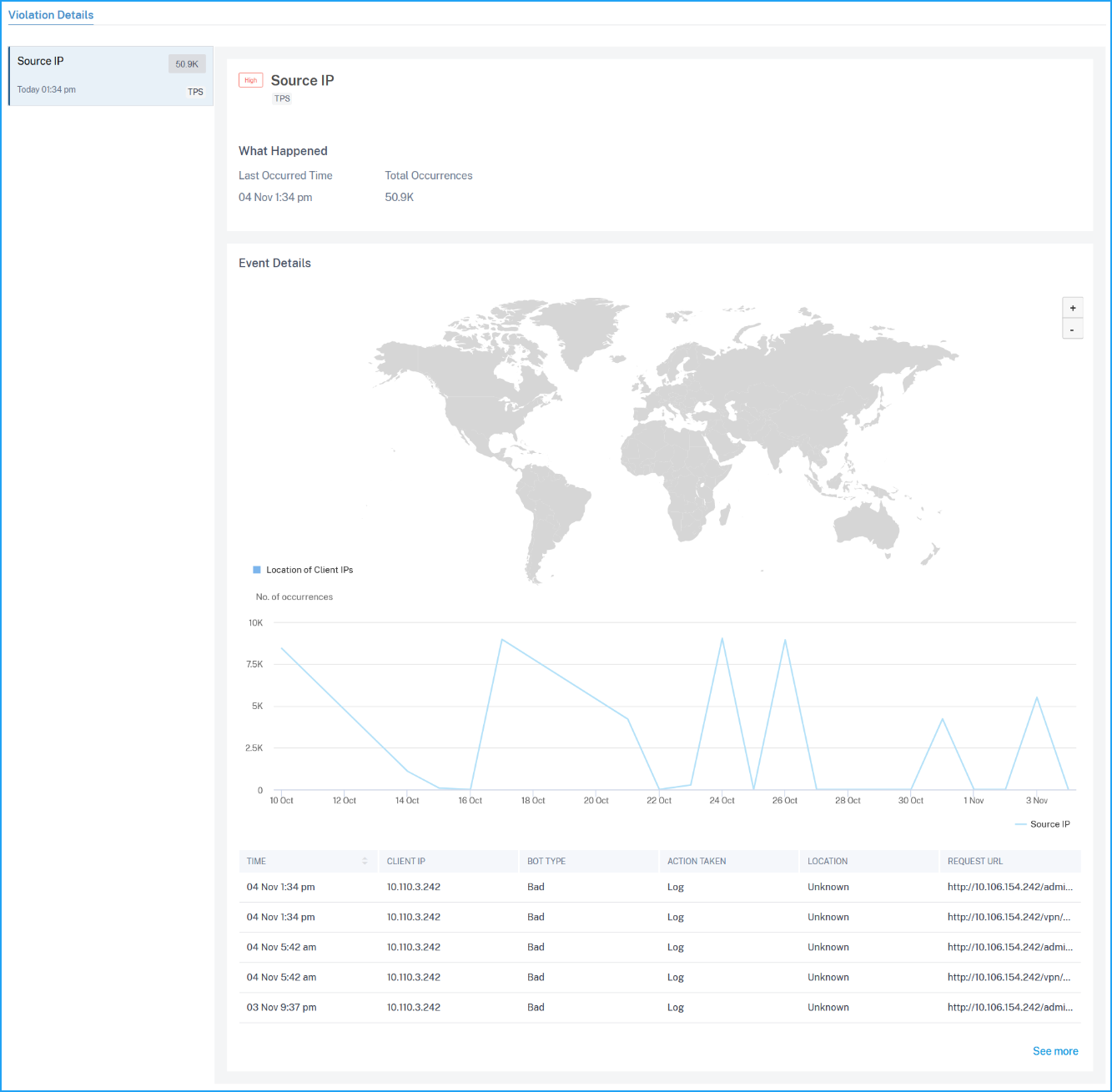

      Bot violation details
Note
Under WAF and Bot, you can view analytics for content switching virtual server that is bound with load balancing virtual servers. Click the content switching virtual server and under Bound Load Balancing Server, you can view the list of load balancing servers bound to the content switching virtual server.

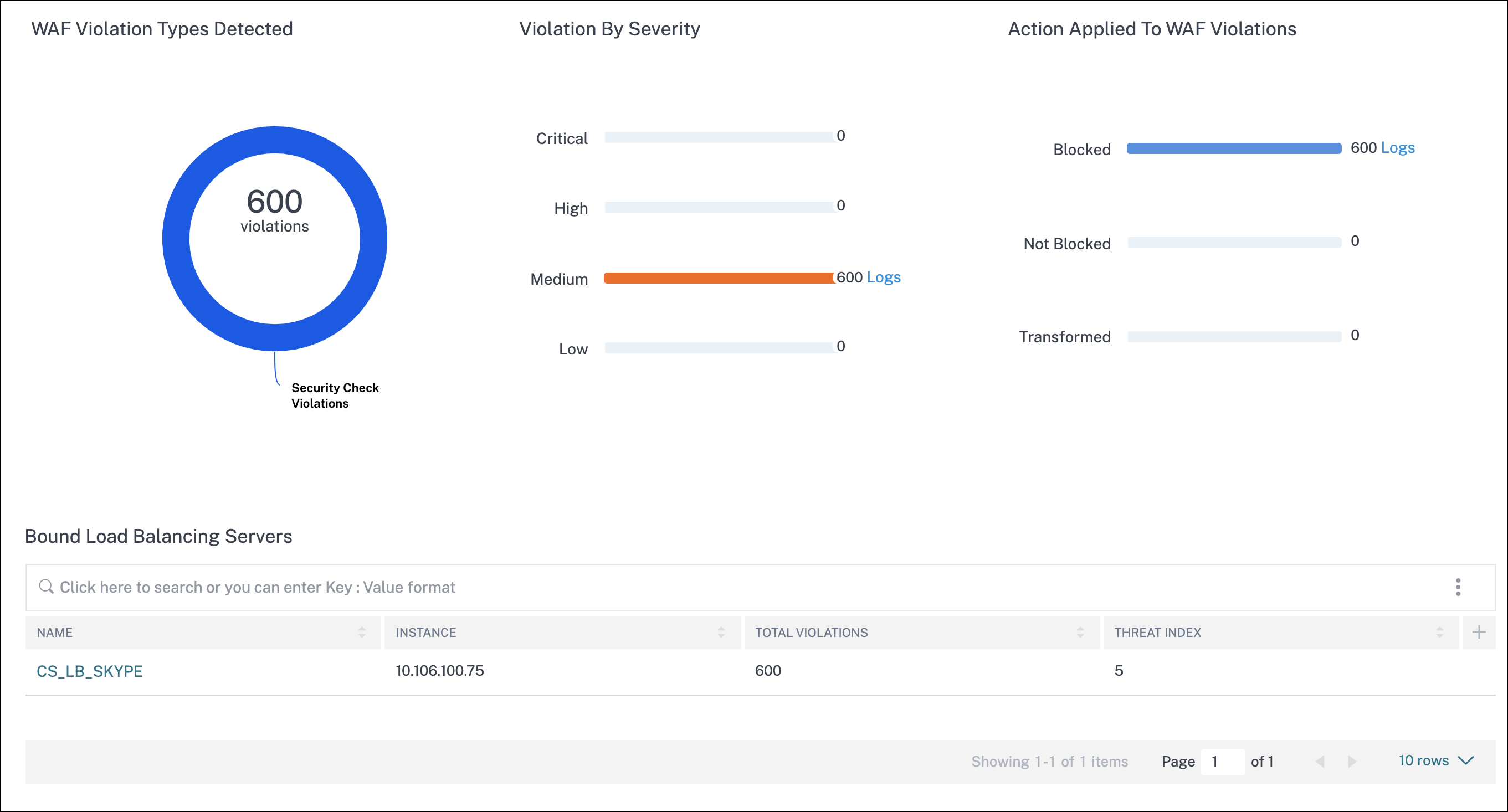

Content Switching server with Load Balancing server

View events history

Click the Events tab to view the bot and WAF events.
