Application details

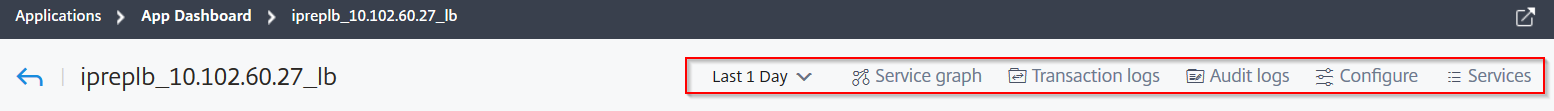

Select the time duration from the list to view details for the specific time duration

Click Service Graph to view service graph for the selected application. For more information, see Service Graph for Applications

Click Transaction Logs to view the detailed transactions for 5xx errors

Click Audit logs to view the detailed audit log information

Click Configure to view or edit the service and service group configuration for the application

Click Service to view services that bound to the application

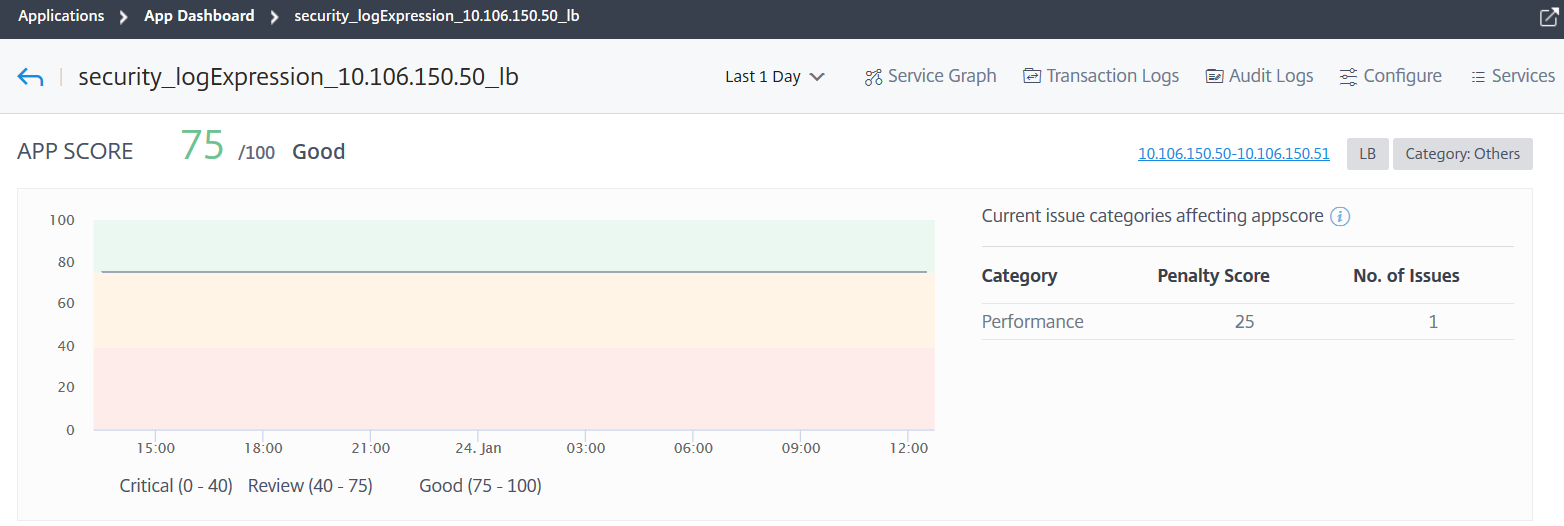

App Score – The application score for the selected time duration. The final score is calculated as 100 minus total penalty.

This dashboard also enables you to view the current issues that are affecting the app score. You can view the issues details under Issues.

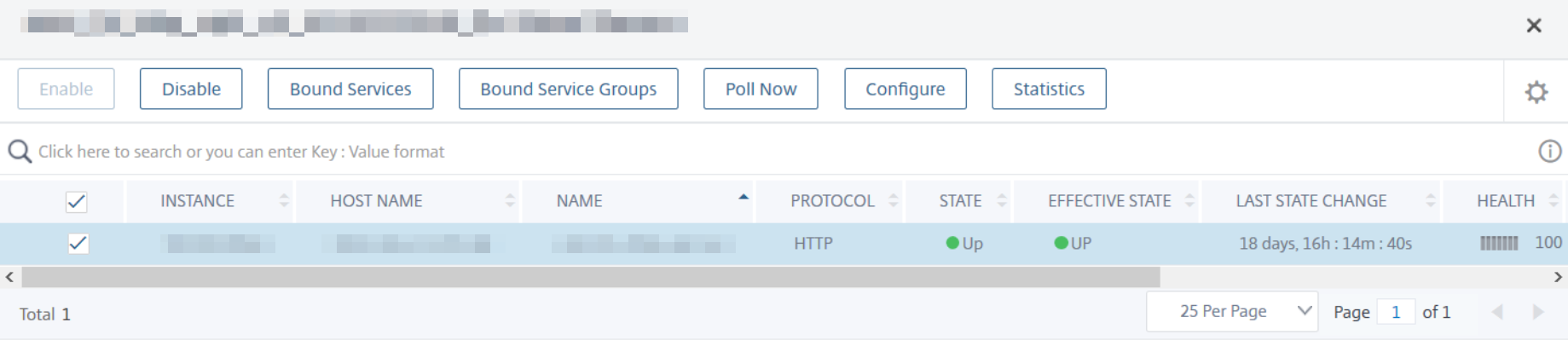

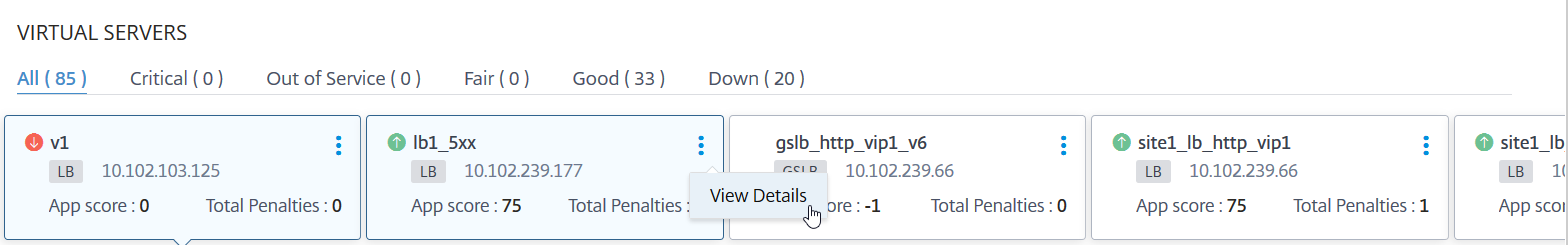

Virtual Servers –

Displays all virtual servers associated with the custom application

Click View Details to view and manage the virtual server settings.

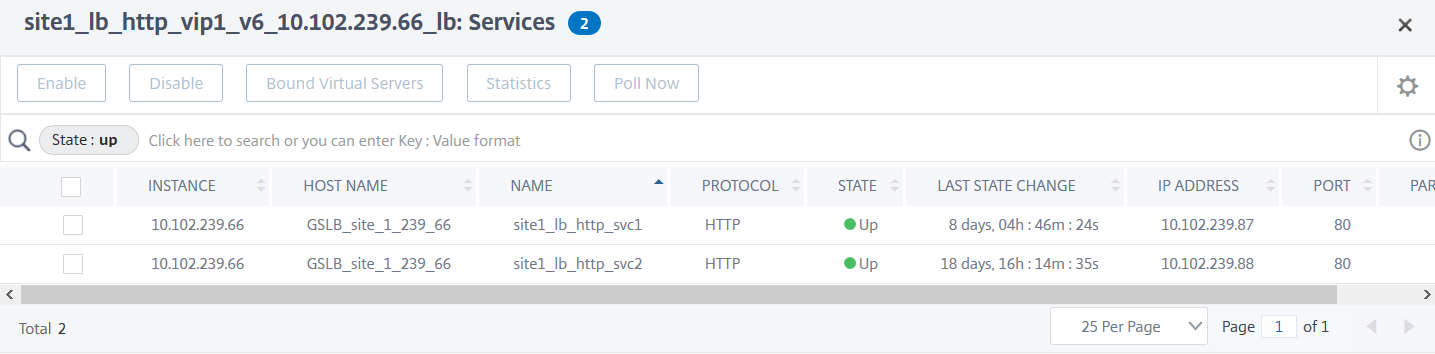

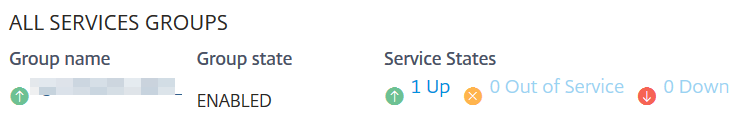

All Services – The services that are bound to the application

Click to view the service details and to manage the service settings

Issues – The issues that are applicable for selected application. You can view the following issues along with its category:

Click each issue to check details such as detection message, when the issue has occurred, Recommended actions, and details.

For more information, see Performance indicators for application analytics.

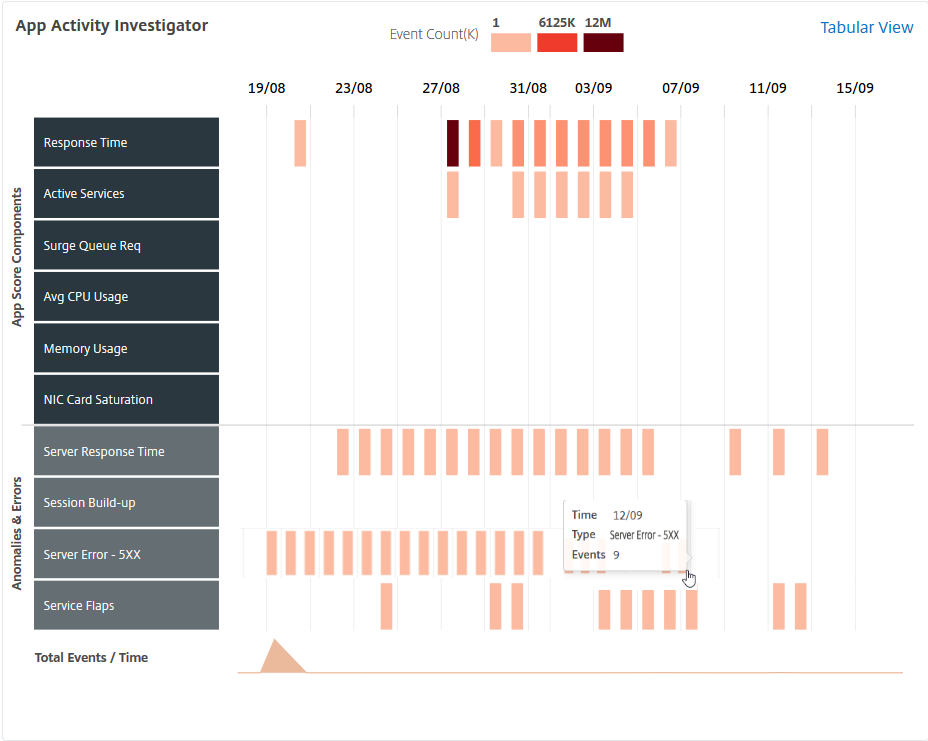

The following image is the earlier view of App Activity Investigator page:

You can now view all issues in the Issues section, along with the category that you could view in App Activity Investigator page.

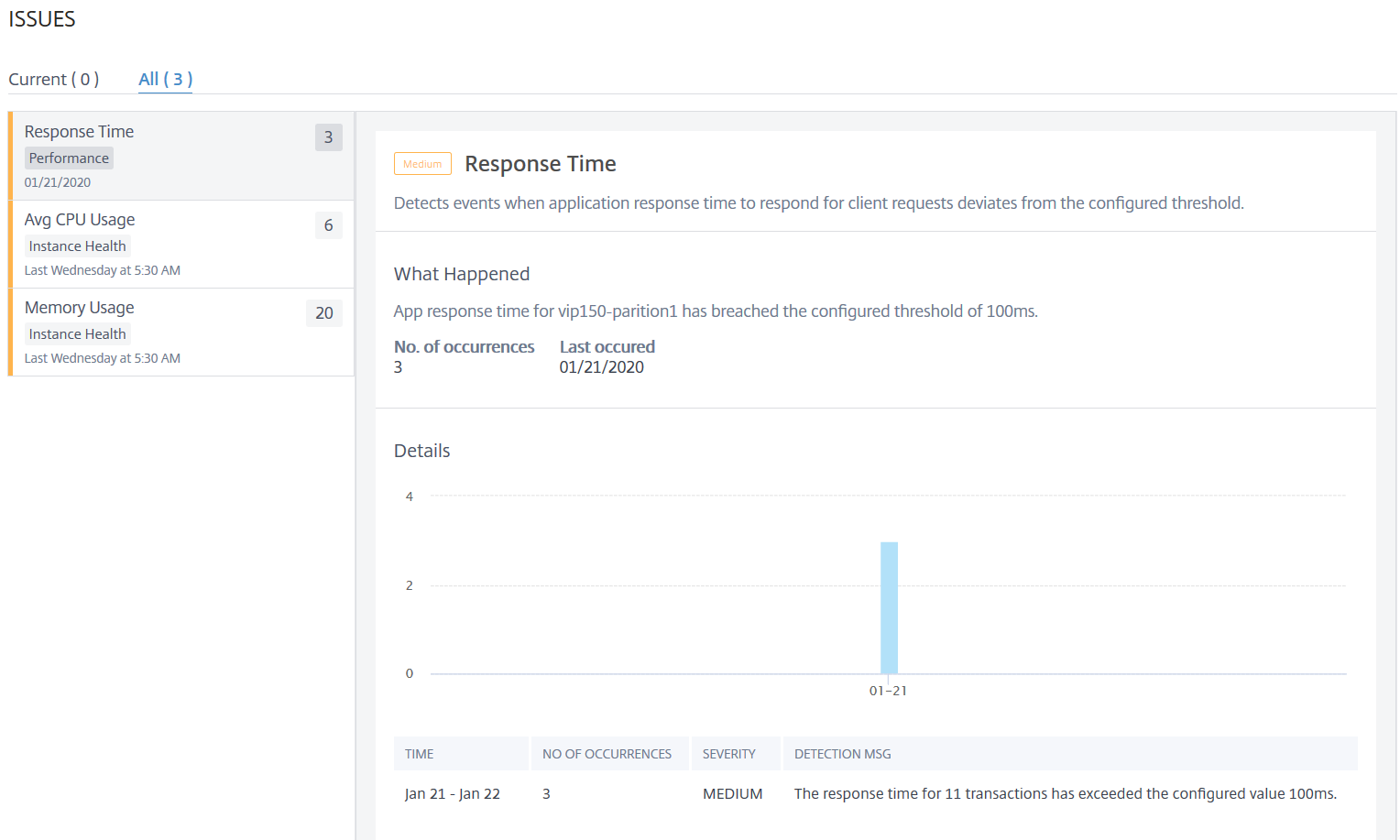

The following example is the application issues for 1-day duration. The Current tab indicates no current issues impacting the app score.

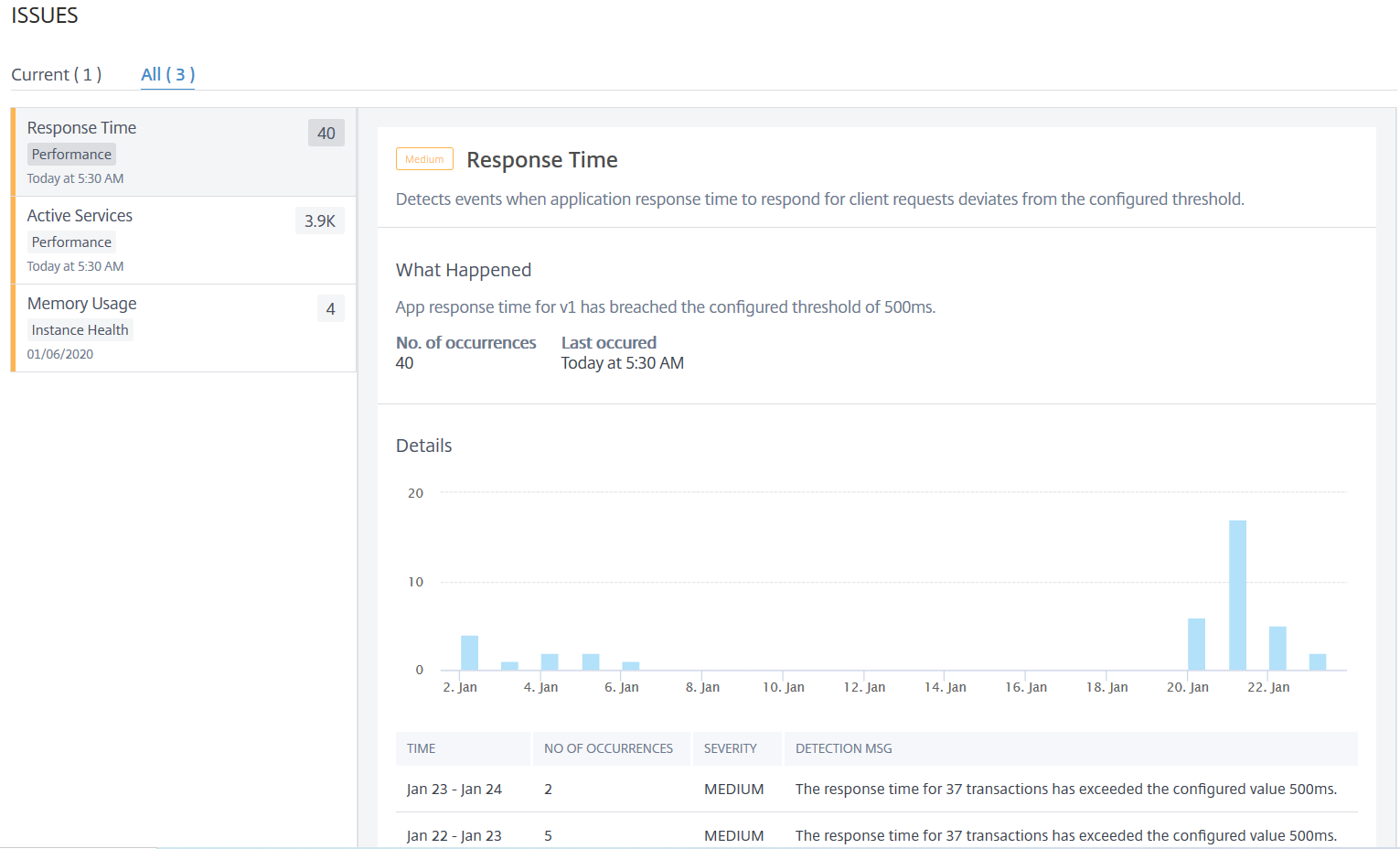

The All tab displays the total issues detected for the 1-day duration.
