Hardware health attributes for the SDX 16000 platform

Last published : Oct 01, 2026
The following table lists the recommended ranges for the health attributes on the SDX 16000 platform.
Run the ipmitool sdr list command from the shell. This command lists the sensory parameters data in detail.
Run the stat system -detail command from the CLI. This command lists a subset of the parameters.
Health Attribute (shell) Health Attribute (CLI) Recommended Range
CPU1 Temp CPU 0 Temperature (Celsius) 10–95
CPU2 Temp CPU 1 Temperature (Celsius) 10–95
PCH Temp Temperature 1 (Celsius) 10–85
System Temp Internal Temperature (Celsius) 10–80
Peripheral Temp Temperature 0 (Celsius) 10–80
Fan 1 CPU Fan 0 Speed (RPM) 1260–8260
Fan 2 CPU Fan 1 Speed (RPM) 1260–8260
Fan 3 System Fan Speed (RPM) 1260–8260
Fan 4 System Fan 1 Speed (RPM) 1260–8260
Fan 5 System Fan 2 Speed (RPM) 1260–8260
Fan 6 Fan 0 Speed (RPM) 1260–8260
12V +12.0 V Supply Voltage 11.330–12.520
5VCC +5.0 V Supply Voltage 4.713–5.217
3.3VCC Main 3.3 V Supply Voltage 3.134–3.464
VBAT Battery Voltage (Volts) 2.591–3.464
Vcpu1VCCIN CPU 0 Core Voltage (Volts) 1.616–2.016
Vcpu2VCCIN CPU 1 Core Voltage (Volts) 1.616–2.016
Vcpu1VDDQABCD Voltage 0 (Volts) 1.096–1.344
Vcpu1VDDQEFGH Voltage 1 (Volts) 1.096–1.344
Vcpu2VDDQABCD Voltage 2 (Volts) 1.096–1.344
Vcpu2VDDQEFGH Voltage 3 (Volts) 1.096–1.344
5VSB 5V Standby Voltage (Volts) 4.745–5.249
3.3VSB Standby 3.3 V Supply Voltage 3.117–3.447
1.8V PCH Voltage 4 (Volts) 1.698–1.883
PS1 Status Power supply 1 status
  • not applicable -
PS2 Status Power supply 2 status
  • not applicable -

Sample output

The following sections list the different ways to view the system sensor health attributes. The data is a sample representation only. The output from your appliance might be different. For the acceptable ranges, see the previous table.
  • From the CLI
  • From the shell
  • From the LOM GUI

CLI

At the command line, type: stat system -detail
>stat system -detail

NetScaler Executive View

System Information:
Up since        Tue Nov 15 13:50:59 2022
Up since(Local) Tue Nov 15 13:50:59 2022
Memory usage (MB)                   3562
InUse Memory (%)                    6.24
Number of CPUs                         9

System Health Statistics (Standard):
CPU 0 Core Voltage (Volts)                      1.77
CPU 1 Core Voltage (Volts)                      1.77
Main 3.3 V Supply Voltage                       3.49
Standby 3.3 V Supply Voltage                    3.45
+5.0 V Supply Voltage                           5.26
+12.0 V Supply Voltage                         12.44
Battery Voltage (Volts)                         3.11
Intel CPU Vtt Power(Volts)                      0.00
5V Standby Voltage(Volts)                       5.04
Voltage Sensor2(Volts)                          0.00
CPU Fan 0 Speed (RPM)                           3360
CPU Fan 1 Speed (RPM)                           3360
System Fan Speed (RPM)                          3360
System Fan 1 Speed (RPM)                        3360
System Fan 2 Speed (RPM)                        3360
CPU 0 Temperature (Celsius)                       54
CPU 1 Temperature (Celsius)                       53
Internal Temperature (Celsius)                    33
Power supply 1 status                         NORMAL
Power supply 2 status                         NORMAL
Power supply 3 status                  NOT SUPPORTED
Power supply 4 status                  NOT SUPPORTED

System Disk Statistics:
/flash Size (MB)                               29748
/flash Used (MB)                                3927
/flash Available (MB)                          23441
/flash Used (%)                                   14
/var Size (MB)                                800856
/var Used (MB)                                 20127
/var Available (MB)                           716660
/var Used (%)                                      2

System Health Statistics(Auxiliary):
Voltage 0 (Volts)                               1.20
Voltage 1 (Volts)                               1.20
Voltage 2 (Volts)                               1.20
Voltage 3 (Volts)                               1.20
Voltage 4 (Volts)                               1.88
Voltage 5 (Volts)                               0.00
Voltage 6 (Volts)                               0.00
Voltage 7 (Volts)                               0.00
Fan 0 Speed (RPM)                               3360
Fan 1 Speed (RPM)                               0
Fan 2 Speed (RPM)                               0
Fan 3 Speed (RPM)                               0
Temperature 0 (Celsius)                      28
Temperature 1 (Celsius)                      34
Temperature 2 (Celsius)                       0
Temperature 3 (Celsius)                       0
 Done
>

Shell

At the command line, type: shell
> shell
root@ns# ipmitool sdr list

CPU1 Temp        | 54 degrees C      | ok
CPU2 Temp        | 53 degrees C      | ok
PCH Temp         | 34 degrees C      | ok
System Temp      | 33 degrees C      | ok
Peripheral Temp  | 28 degrees C      | ok
CPU1_VRMIN Temp  | 65 degrees C      | ok
CPU1_VRMIO Temp  | 44 degrees C      | ok
CPU2_VRMIN Temp  | 46 degrees C      | ok
CPU2_VRMIO Temp  | 47 degrees C      | ok
P1_VRMABCD Temp  | 38 degrees C      | ok
P1_VRMEFGH Temp  | 43 degrees C      | ok
P2_VRMABCD Temp  | 42 degrees C      | ok
P2_VRMEFGH Temp  | 45 degrees C      | ok
FAN1             | 3360 RPM          | ok
FAN2             | 3360 RPM          | ok
FAN3             | 3360 RPM          | ok
FAN4             | 3360 RPM          | ok
FAN5             | 3360 RPM          | ok
FAN6             | 3360 RPM          | ok
P1_DIMMA~D Temp  | 38 degrees C      | ok
P1_DIMME~H Temp  | 33 degrees C      | ok
P2_DIMMA~D Temp  | 30 degrees C      | ok
P2_DIMME~H Temp  | 30 degrees C      | ok
12V              | 12.44 Volts       | ok
5VCC             | 5.26 Volts        | ok
3.3VCC           | 3.49 Volts        | ok
VBAT             | 3.11 Volts        | ok
Vcpu1VCCIN       | 1.77 Volts        | ok
Vcpu1VCCIO       | 1.00 Volts        | ok
Vcpu2VCCIN       | 1.77 Volts        | ok
Vcpu2VCCIO       | 1.00 Volts        | ok
Vcpu1VDDQABCD    | 1.20 Volts        | ok
Vcpu1VDDQEFGH    | 1.20 Volts        | ok
Vcpu2VDDQABCD    | 1.20 Volts        | ok
Vcpu2VDDQEFGH    | 1.20 Volts        | ok
5VSB             | 5.04 Volts        | ok
3.3VSB           | 3.45 Volts        | ok
2.5V BMC         | 2.56 Volts        | ok
1.8V BMC         | 1.83 Volts        | ok
1.2V BMC         | 1.20 Volts        | ok
1.0V BMC         | 1.02 Volts        | ok
1.8V PCH         | 1.88 Volts        | ok
PVNN PCH         | 1.06 Volts        | ok
1.05V PCH        | 1.06 Volts        | ok
PS1 Status       | 0x01              | ok
PS2 Status       | 0x01              | ok
AOC_NIC2 Temp    | 51 degrees C      | ok
AOC_NIC4 Temp    | 51 degrees C      | ok
root@ns#

LOM GUI

  1. Log on to the LOM GUI.

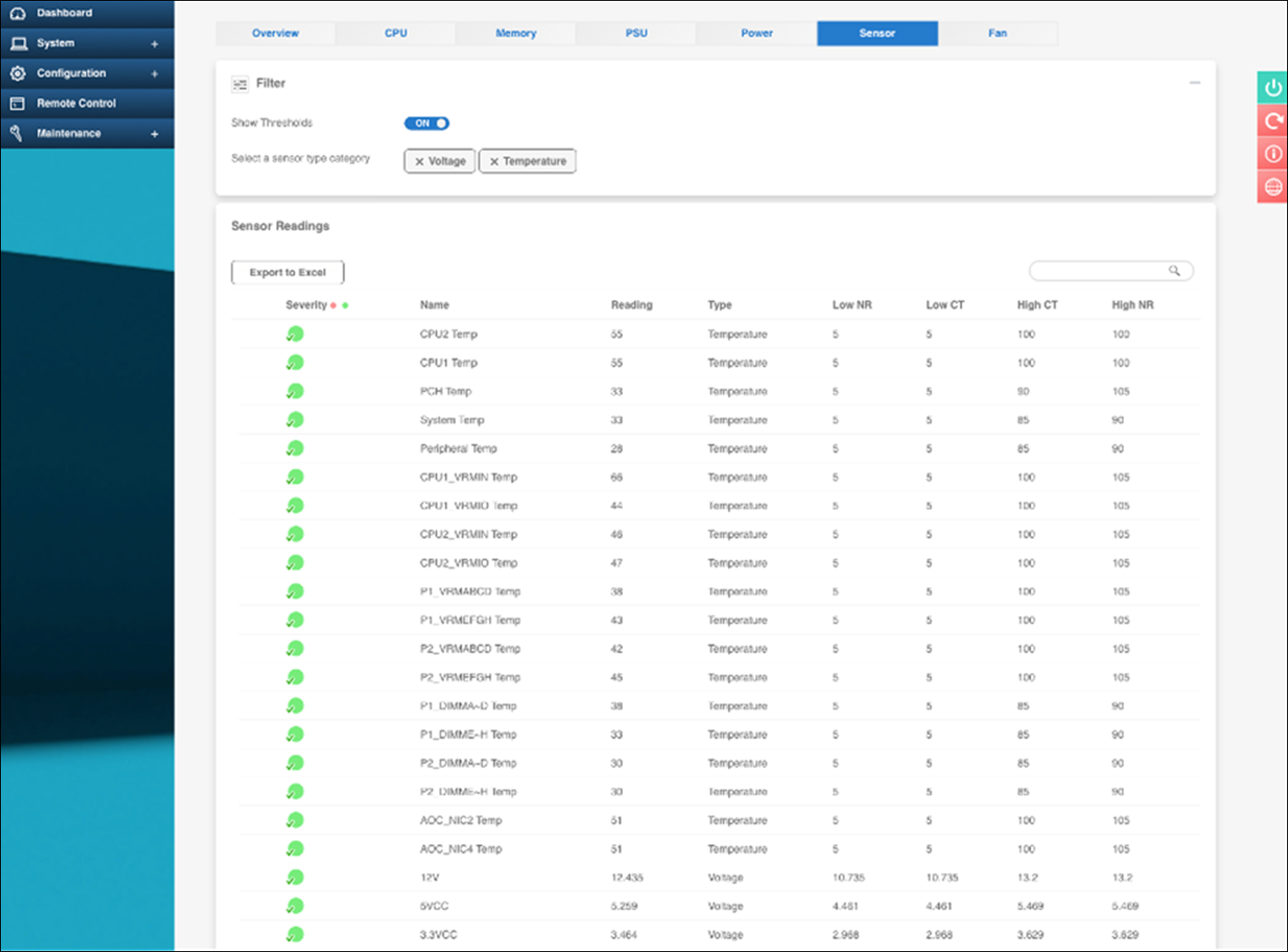

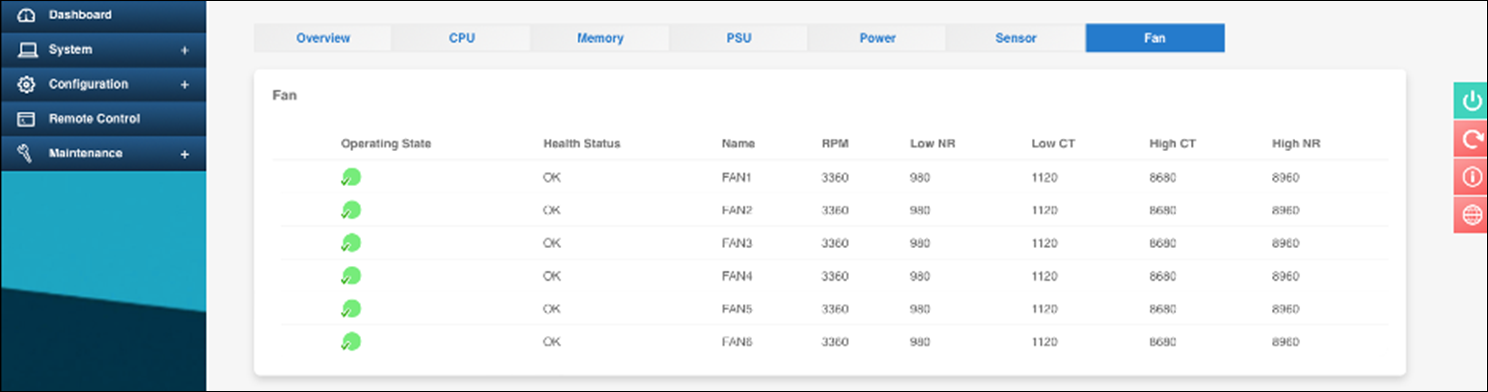

  2. On the Dashboard, click Sensor for temperature and voltage values. Click Fan for fan values.
    SensorFan
